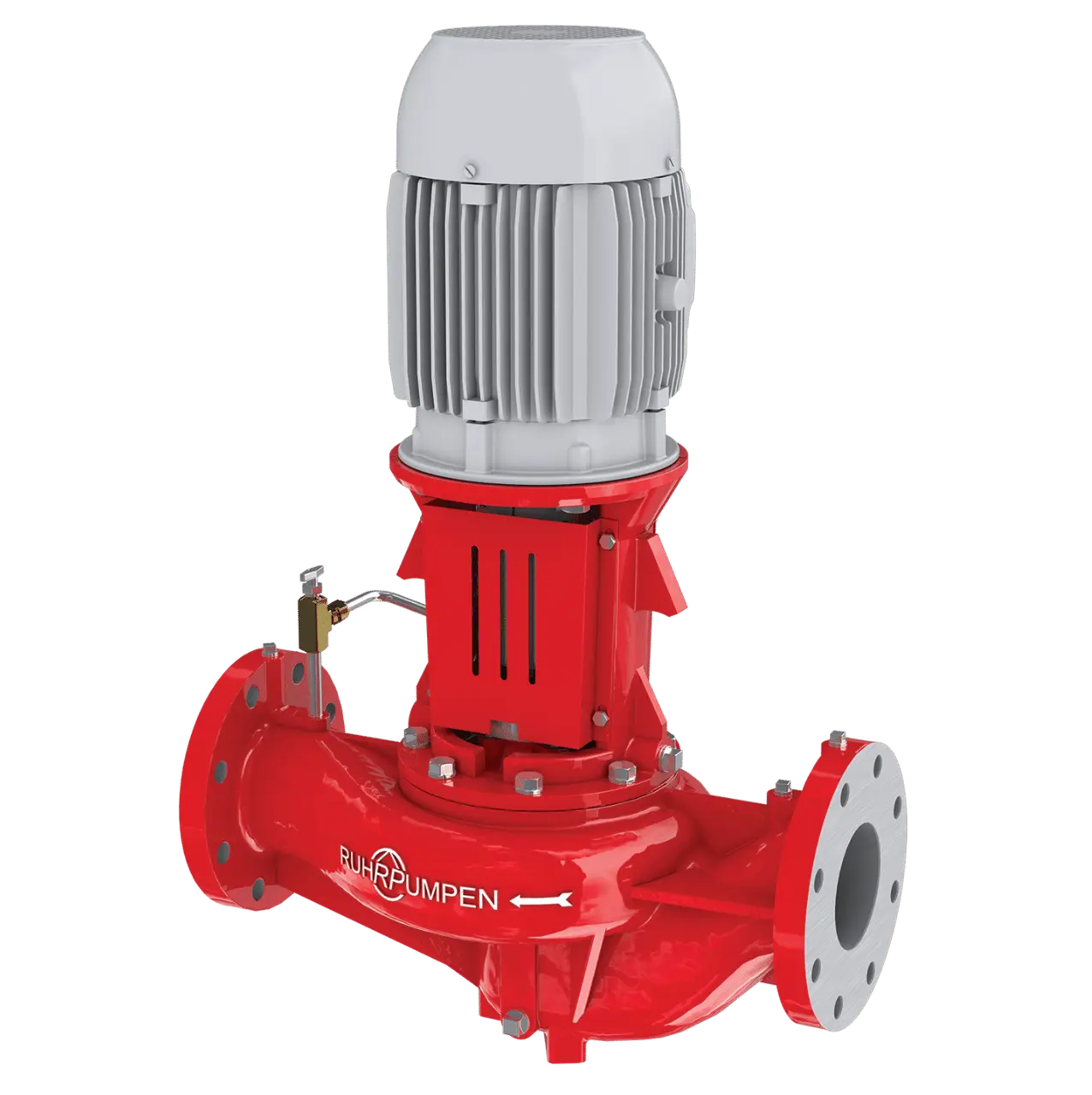

AC Fire Pump 1580 Series Vertical In-Line Fire Pump

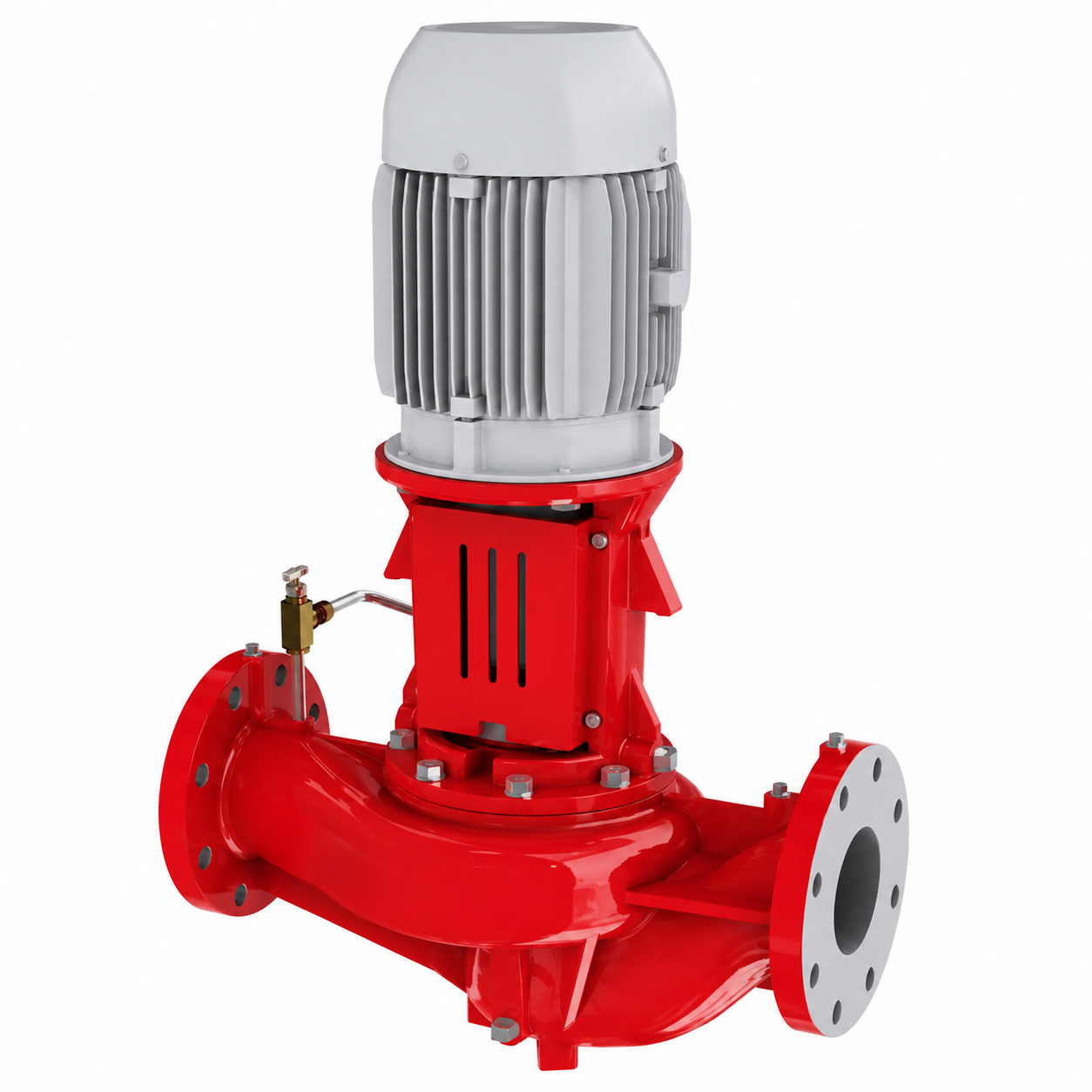

Vertical In-Line AC Fire pump

Product Features

  • UL listed and FM approved
  • 35 to 1500 GPM, 40 to 184 PSI
  • Cast Iron Bronze Fitted
  • Close Coupled, electric driven, self-venting, bearing free pump design
  • Top pull-out
  • Same size suction and discharge on common centerline
  • Single stuff box
  • No base, coupling or guard

AC Fire Pump offers a range of vertical in-line pumps. The 1580 Series fire pumps are designed to provide water to stand pipe, sprinkler, chemical mitigation and hydrant systems for fire suppression in industrial and commercial facilities. The vertical design requires 30% less space than a traditional horizontal design.  In-line equal sized suction and discharge flanges make this a great option for retrofits.  The top pullout construction allows for servicing the pump without disturbing connecting piing.  Impellers are dynamically balanced to reduce vibration and potential wear. In compliance with NFPA #20, UL, ULC, FM and ANSI.

UL/FM Certified

150 GPM
150 – 3x3x9F – 3600 RPM
150 – 3x3x9G – 3600 RPM
150 – 6x6x11F – 3600 RPM

200 GPM
200 – 3x3x7F – 3600 RPM
200 – 3x3x9F – 3600 RPM
200 – 3x3x9G – 3600 RPM
200 – 6x6x11F – 3600 RPM

250 GPM
250 – 3x3x7F – 3600 RPM
250 – 3x3x9G – 3600 RPM
250 – 6x6x11F – 3600 RPM

300 GPM
300 – 4x4x7F – 3600 RPM
300 – 4x4x9.5F – 3600 RPM
300 – 6x6x11F – 3600 RPM

400 GPM
400 – 4x4x7F – 3600 RPM
400 – 4x4x9.5F – 3600 RPM
400 – 6x6x11F – 3600 RPM

450 GPM
450 – 4x4x7F – 3600 RPM
450 – 4x4x9.5F – 3600 RPM
450 – 6x6x11F – 3600 RPM

500 GPM
500 – 4x4x7F – 3600 RPM
500 – 4x4x9.5F – 3600 RPM
500 – 6x6x11F – 3600 RPM

750 GPM
750 – 6x6x11F – 3600 RPM
750 – 8x8x9.5 – 3600 RPM

1000 GPM
1000 – 8x8x9.5 – 3600 RPM

Series 1580 Dimension Drawings

Fire Pump Accessories

  •  Available in capacities through 5000 gpm
  •  Listed product offered where available
  •  Wide range of accessories for both electric and diesel application
